VIJAYA VEENINE CARTON FOLDER GLUER

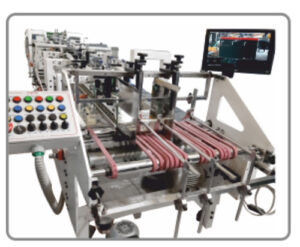

Feeder

Electronic vibrating arm, separate motor & VFD with suction feeding belts : The feeding unit with variable speed & suction is designed to allow appropriate space between the cartons even at a very high speed.

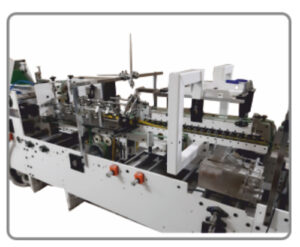

ALLIGNER UNIT FOR SIDE REGISTRATION

Electronic vibrating arm, separate motor & VFD with suction feeding belts : The feeding unit with variable speed & suction is designed to allow appropriate space between the cartons even at a very high speed.

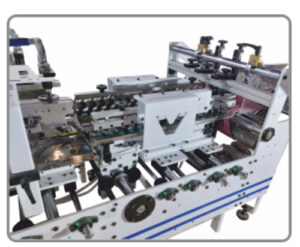

PRE- FOLDING UNIT

For smooth opening of the carton at the time of filling on automatic filing / packing machine, the first and third crease can be pre-folded at 180' & 135" respectively. The unit is designed with side folding belt (Third crease) to avoid scratches on the cartons.

Self adjustable transport tracks for duplex & E-fluited cartons

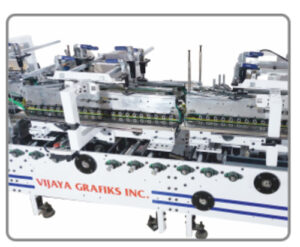

LOCK BOTTOM UNIT

For folding of all lock bottom flaps this unit is designed in three transport tracks in 2 units, so that the carton remains under pressure of all three tracks at the time of folding of flaps for lock bottom & four/six corner boxes.

This prevents shifting or non alignment of cartons resulting to low wastage and increases production speed.

Self adjustable transport tracks for duplex and E-flute cartons.

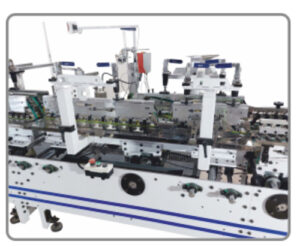

FINAL FOLDING UNIT WITH SPEED VARIATOR

High speed precision design helps in accurate folding of second and fourth crease after gluing.

The speed variator device in final folding unit helps in varieing the speed of side belts as per the requirement of carton dimension to prevent wastage and miss registration of carton at high speed.

The highly performing design of folding belts & runner which plays a vital role in final finishing at a high speed.

Collapsible centre bottom track which can help to run smallest & the biggest carton without hassles.

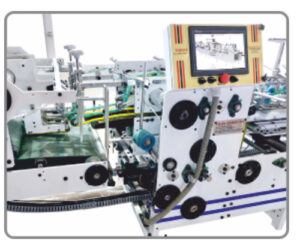

TRANSFER SECTION

It allows the carton to be transferred to pressure unit in regular, constant flow at any production speed.

Straitening device used to correct the registration of outer cartons.

Equipped with touch control screen for the operating of the machine.

Batch counter equipped with electronic sensor and pneumatic kicker.

Optional clapping device used for corrugated cartons.

Optional : Ejection for quality assurance system.

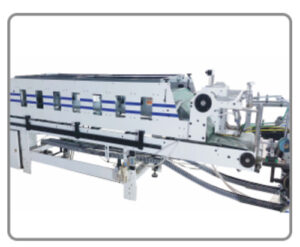

PRESSURE DELIVERY

Pneumatic operated pressure system

4.5 mtr length with 3.1 mtr of effective pressure.

Separate motor for pressing station. The independent geared motor helps in increasing or decreasing the speed of unit. So that the different size of cartons comes between the pressure belts smoothly.

Upper conveyor can be moved forward and backward depending on the length of the carton.

Optional Pneumatically operated carton holding system for outer carton cartons.
