VIJAYA ECO FOLD CARTON FOLDER GLUER

Feeder

Variable speed driven: The feeding unit with variable drive is designed to allow appropriate space between the cartons.

Electro magnetic feeder clutch system is to stop the feeder unit while the entire machine is running.

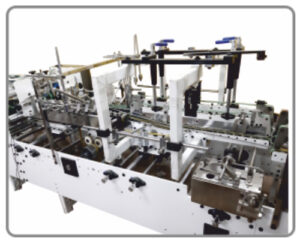

PRE -FOLDING OR CRASH LOCK BOTTOM UNIT

The first and third crease can be pre-folded at 180 & 135 respectively.

For folding of all lock bottom flaps this unit is designed in three transport tracks in 2 units, so that the carton remains under pressure of all three tracks at the time of folding of flaps for lock bottom & four/six corner boxes.

This prevents shifting or non alignment of cartons resulting to low wastage and increases production speed.

Self adjustable transport tracks for duplex and E-flute cartons.

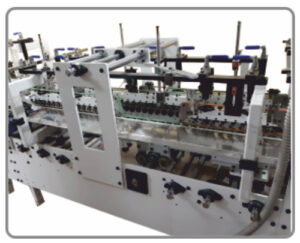

FINAL FOLDING UNIT WITH SPEED VARIATOR

The folding of second and fourth crease after gluing process.

The highly performing design of folding belts & runner which plays a vital role in final finishing at a high speed.

Variable speed of final folding belts.

The side lay belt speed can be varied by speed variator knob.

Optional collapsable centre bottom track.

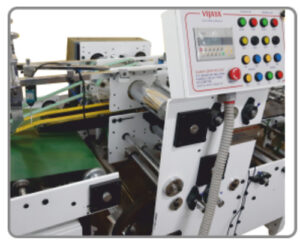

TRANSFER SECTION

It allows the carton to be transferred to pressure unit in regular, constant flow at any production speed.

Equipped with push button control for the operating of the machine.

Batch counter equipped with electronic sensor and pneumatic kicker.

Optional Straitening device used to correct the registration of outer cartons.

Optional clapping device used for corrugated cartons.

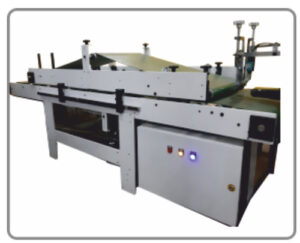

PRESSURE DELIVERY

3.7mtr length with 2.5 mtr length effective pressing station.

Separate motor for pressing station. The independent geared motor helps in increasing or decreasing the speed of unit. So that the different size (Duplex or Triply) of cartons comes between the pressure belts smoothly.

The finished carton comes under a pressure rollers & get cured.
